FULL AUTO PIPE CUTTING MACHINE

1. Equipment performance

1. Machine controlled by computer, easy operation

2. Coolant auto circulated, to ensure cutting surface smooth and cutting saw blade long life

3. Tracks are automatically lubrcates feeding, stable running

4. With IPC controller, simple circuit and easy maintenance.

4. Working effiency: take 30 pipes as example, length at 400 mm, one cycle time needed at around 8-12 seconds.

2. Basic equipment parameters:

1. Working Type: Servo Motor Feeding, Auto Loading, Auto Sizing, Auto Cutting

2. Saw Blade: HSS Ø250-400 mm

3. Cooling Type: Circulated water cooling

4. Operator: 1 person/machine;

5. Voltage: 380V 3 phase/220V Single phase 50HZ

6. Air pressure: 5 ~ 7 KGF

7. Control Mode: Intergrated IPC

8. Feeding Mode: Servo Motor Feeding

9. Main Motor: 3HP/6P

10.Cutting Vertical Accuracy:  within 0.08 degree

11. Feeding Length: 10-700 MM (or per customer requirement)

12. Equipment specification: 11200*2000*1900 mm

13. Weight: about 2 T

3. Standard parts brand:

Pneumatic components:  SMC

Motor:               Taiwan Brand

Servo Motor:          Yaskawa, Japan

 PC:                  ICM, China

Ball Screw              Hiwin

Contactor:               Schneider

Bearing                 NSK

4. Machine Main Section Description

Feeding Unit:

Feeding unit adops floating system to increase material fault tolerance rate, clamping action controlled by time, simple and fast adjustment, feeding length with automatic compensation, feeding and material output are with own compensation data, automatic adjust after input without manual adjustment

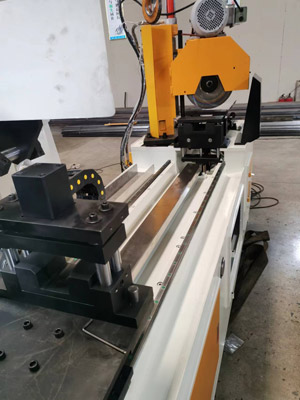

Cutting Unit:

Cutting system adopts oil pressure propulsion, cutting blade vertical slide up and down type, stable and efficient. Multiple sets of gear transmission, large torque, suitable for heavy cutting, with fast and slow two speed mode so to adopt to different material thickness.

5. Equipment Production Process

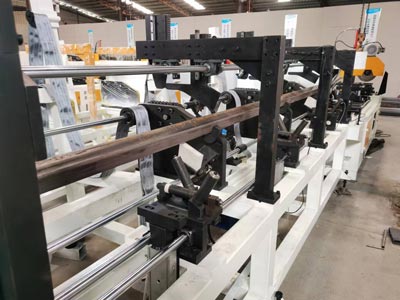

To put whole bundle pipes onto the pipe storage rack, set the required cutting length, start auto cutting.

Please make sure that the pipes can not bend or deformed, or pipe ends with big burrs.

Auto Loading --- Auto Pipe Arrangement ----Main Clamp Loose—Feeding clamp move to set position---main clamp tight clamp --- Feeding clamp loose and return to set position --- Cutting saw start cutting --- Saw Blade Return --- Main Clamp Loose --- Next Cutting Cycle ---- Operator check cutting length

6. PACKING   :BY SEAWORTHY PACKING

7. SHIPMENT:WITHIN 70 DAYS AFTER RECEIPT OF DOWN PAYMENT

8.PAYMENT TERMS:50% DOWN PAYMENT BY T/T

50% BALANCE PAYMENT BEFORE SHIPMENT BY t/t
