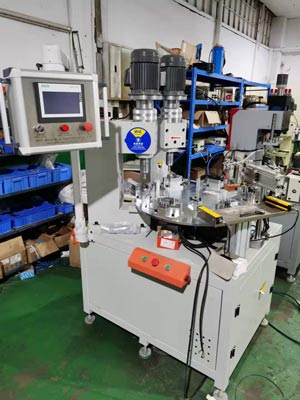

SIX STATIONS ROTARY RIVETING MACHINE

(Click to see video)

SIX STATIONS ROTARY RIVETING MACHINE

This equipment is developed and manufactured according to customer requirements.

1. Primary technical Requirement (acceptance standards) :

2. Customers need to provide products samples and drawings;

3. Complete drawings and all accessories shall be provided

4. The provided samples cannot be deformed or distorted.

I. Equipment performance

1. The frame is made of 80*80*6mm square tube, with surface powder coating finish

2. The working table is made of 20MM steel plate, which has good wear resistance.

3. Jig: the die steel shall be processed by medium wire cutting machine

4. Components are loaded manually.

5. Jig rotating mechanism: the motor drives the clutch brake to make the jig rotation more accurate.

6. Rotary Riveting mechanism: to adope hydraulic cylinder to press, in strong force, so the product is beautiful in appearance.

7. Control system: Delta PLC+ WINVIEW touch screen operation, user-friendly man-machine interface, simple and convenient operation.

8. Equipped with safety grating, it can effectively avoid injuries.

Corresponding moving parts are equipped with protective devices, which can better protect operator’s safety.

9. Standard parts brand:

Pneumatic components:  Airtec

Motor:               Taiwan Brand

Touch screen:          Weiview

PLC:                 Delta

Sensor:               Taiwan Jiazong.

 Relay                 Omron

Other Low Voltage Components  Schneider

II. Basic equipment parameters:

1. The safety of the equipment meets standard requirements;

2. The standard riveting time is < 5-6s/piece without manual loading time.

3. Scope of application: according to customer's product, 3 products shared one machine,

4. Operator: 1 person/machine;

5. Voltage: 380V 3 phase/220V Single phase 50HZ

6. Air pressure: 5 ~ 7 KGF

7. Equipment specification: 1580*1200*1600mm

8. Weight: about 1.5 T

III. Equipment advantages

1. Effectively replace manual labor, reduce the complexity of manual operation, great labor intensity, and have a high degree of automation.

2. The equipment is easy to operate, maintain and comply with ergonomic principles;
