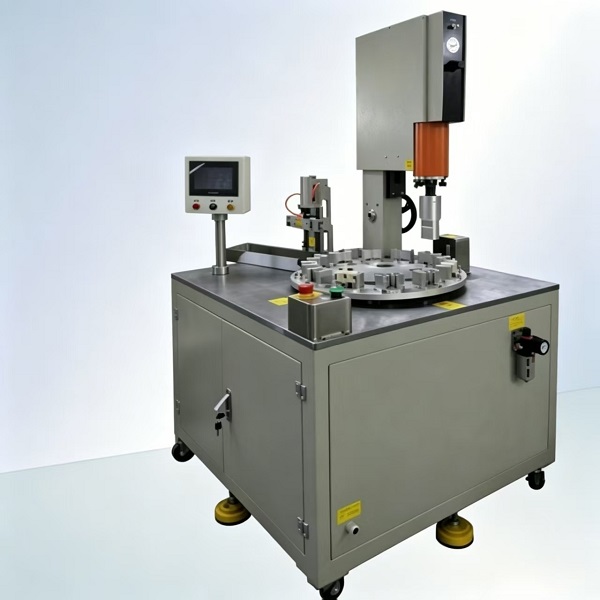

12-Station Rotary Ultrasonic Plastic Welding Machine

This 12-station rotary ultrasonic plastic welding machine is designed for manufacturers requiring maximum throughput. With 12 rotating stations, it allows simultaneous loading, welding, and unloading, drastically reducing cycle time.

Key Features:

• 12 indexable stations for continuous high-speed operation

• Rotary indexing table with ±0.02mm precision

• Ultrasonic frequency options: 20 kHz, 35 kHz

• Welding force: adjustable up to 3000N

• PLC control with 7-inch touchscreen HMI

• Quick tooling change system for different parts

Technical Specifications:

• Number of Stations: 12

• Table Diameter: 1200mm (customizable)

• Ultrasonic Power: 1000W – 4000W

• Cycle Time per Station: 1 – 5 seconds (depending on material)

• Air Supply: 6 – 8 bar

• Voltage: 220V / 380V, 50/60Hz

Applications:
Automotive parts (filters, lights, ducting), medical disposables (syringes, valves), packaging (closures, containers), and consumer electronics housings.

Benefits:

• Up to 1800 parts per hour

• Reduced labor cost – one operator for multiple stations

• Consistent weld quality via digital parameter control

• Minimal maintenance due to modular design

Why Choose Our 12-Station Rotary Welder?
Compared to standard ultrasonic welders, this 12-station rotary system eliminates idle time for loading/unloading. It is the ideal solution for 24/7 production lines requiring high repeatability.

Contact us for a customized quote based on your part size and production volume.
